What mud system suitable for HDD drill site

Mud cleaning systems are critical in the drilling process, as they protect the system components by lowering the solids/sand content in the drilling fluid.

There are three main types of systems — integral trailer, skid-mounted and trailer-mounted. Skid mounted allows for transporting through very swampy and difficult terrain, as you could drag it behind a dozer or excavator to your needed work area. Integral trailer designs allows for a more compact, intended design for maximum efficiency and ease of transport.

In HDD drilling mud cleaning system, sometimes there is a single tank, closed-loop system or a multi-tank mud system is required, DC Solids Control can develop the proper system to meet specific requirements. from small HDD (hirontal directional drilling mud system) to deep oil well drilling mud system.

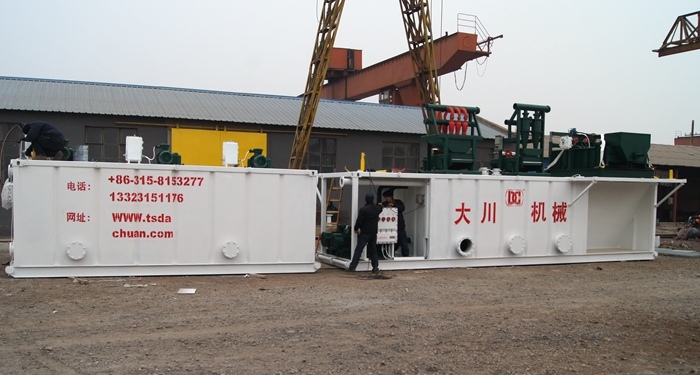

Configurations of DC drilling mud recycling system include Mud Recycling Tank, drilling mud mixing tank with attachments like walkways, handrails, mud clean gate. Shale Shaker for first phase mud recycling equipment of solids upper 100 microns. Desander for the second mud cleaning of separation solids uppper  50 microns. Desilter is the third phase mud recycling equipment of separation solids upper to 20 microns. Decanter Centrifuges is the fourth phase mud recycling equimpent for separation of solids uppper 2 to 5 microns. Mud Agitators, Mud guns, Mud mixing pumps,and drilling mud transfer pumps for the mud recycling unit.

Besides the standard drilling mud recycling system, DC solid control also provide customized mud recycling system accordling to drilling contractors applications.
