SHAKER SCREEN-Oil Field Shale Shaker Screen, Vibratory Screen Filter Elements for Oil Drilling and Oil Refinery Plant

Jan. 18, 2024

We supply metal wire vibratory screen supplied in standard accessories / OEM for Various Shale Shakers and Motion Solid Control Devices. Our vibrating shaker screen is mainly used in oil drilling mud process, coal mine and various ore dressing and other industrial sifting screening. The screen panels can be designed with multi-layer or single layer flat panels, with or without backing plate support.

Wedge wire filter elements for oil field equipment & spares
Service conditions:
Fluid: Oil emulsion( consists of 40% saline water and 60% crude oil )
Viscosity @ oper. Temp. = 3160 cps Density @ Oper. Temp. = 961 kg/m3 Flow
Rate = 354.16 m3/h Working temperature= ( min./ Nor. / Max. ) = 25/35/50
Deg.C Pressure drop across clean filter < 5 Kpa Max. allowable pressure drop
= 50 Kpa Slot size= 0.23 mm Selected :

    SHAKER SCREEN-Oil Field Shale Shaker Screen, Vibratory Screen Filter Elements for Oil Drilling and Oil Refinery Plant

    Elements
    Radial slot opening
    Slot size = 0.23 mm
    Wire width = 0.75 or 1.0 mm
    Outside diameter = 30 mm
    Length= 1000 mm
    Max. Delta P 4.2 Bard
    AISI 316L
    Condition -clean pressure drop < 5 kpa

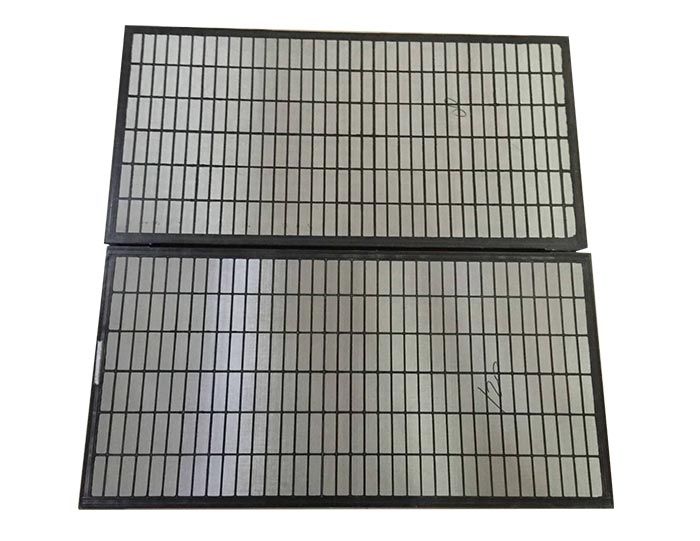

    Shale Shaker Screen for Oil Drilling

    DescriptionP/N
    Mesh 25 Or Equal01-03-25
    Mesh 39 Or Equal01-03-39
    Mesh 48 Or Equal01-03-48
    Mesh 86 Or Equal01-03-86
    Mesh 97 Or Equal01-03-97
    Mesh 118 Or Equal01-03-118
    Crown Rubber01-05
    Deck Spring (rear)01-07

    Shale shakers for Oil & Gas, Petrochemical
    Shale Shaker Model-FLCC-514
    Screen Pattern- Multi layer wave
    Mesh Sizes: 40x40,60x60,80x80,100x100,120x120

    Oil vibrating shale shaker screen

    Oil drilling filter vibrating flat shale shaker screen for solid seperation

    Hook strip Flat Shaker Screen for Oil and Gas

    500 2000 hookstrip flat shale shaker screen multi layer metal mesh

    1250 x 720mm iron frame shale shaker screen decks

    Composite Frame Square Hole oil field shale shaker screens

    Shaker screen for solid control equipment

    Waved type multi layer mesh screen for oil field and quarry screening uses

    Oilfield Vibrating Shale Shaker

    Multi-layer or single layer flat wire mesh screen panels for Oil Refinery Plant

    Quarry multi decks vibrating sieve mesh screen with high strength, woven type

    Shaker Vibrating Sand Screen Applied in Quarry

    Quarry Mine Vibrating Shaker Screen

    Gravel mining vibrating shaker screen

    Varieties:
    Vibrating shaker and sieve screen can be: crimped wire screen, mining screen and quarry screen made from metal wire mesh or polyester mesh fabrics to separate mixed material and to classify particle sizes.

    Parts and Structures:
    The oil vibrating screen is made with strips, frames and layers of wire screen cloths by welding or hooking or other forms of bonding. The Screen panels and plates can be combination of single-deck or multi-deck screen, so as to meet the requirements of a certain ore dressing process.

    Strip or Frames: Hookstrip Flat Screen, Soft Screen, Framed Flat Screen, Framed Waved Screen, Hook strip Waved Screen.

    Multilayer Metal Screen Panels made with 304 Wire Cloth and Perforated Steel Backed Vibrating Sifting Screen

    Wire Screen Fabrics Applied for Oil Field Vibrating Screen: Pre-crimped woven steel wire coarse mesh, polyester mesh fabric or micron slotted perforated metal plates, woven stainless steel mesh cloth.

    Filter Mesh Cloth Ranges: 20mesh-275 Mesh

    Common Size of the Screen Panels: 560*1800mm, 600*1800mm, 630*1250mm, 695*1050mm, 700*1050mm, 760*1830mm, 763*1115mm, 800*1250mm.

    Materials:
    Stainless steel 304l, 316l, carbon steel, polyester, nylon or dacron, rubber.
    The materials shall be resistant to acid, alkaline, heat, corrosion, suitable for process of screening and filtering. Also wear resistance is very important for the screening materials as wear occurs badly on the panels due to rubbings between materials and panels during the screening process.

    Plate: 2.0 mm ± 0.1 mm

    Aperture: 40 * 40mm rectangular hole1133 * 780mm * 20-325 mesh / 20 mesh Woven SS Mesh Screen with the upper mesh wire diameter: 0.08mm ± 0.01mm, aperture: 0.17mm ± 0.01mm; Lower mesh wire diameter: 0.32 mm ± 0.01 mm, Aperture:: 1.06 mm ± 0.01 mm

    Features:

    1. Tensioned mesh surface;
    2. High damping capacity resulting in reduced noise;
    3. Easy assembling and disassembling;
    4. Good resilience leading to a higher bounce frequency of materials and increased screen efficiency;
    5. Apertures of screen can be deformed within a certain limit, resulting in a reduced probability of aperture blockage by the material;
    6. Screen panels and plates may be framed with different material in the pressure molding process, extending the service life;
    7. The shale shaker screen for oil and gas industry can handle large liquid flow rate capacity;
    8. Blinding resistance;
    9. Durable & long lasting construction in drilling mud projects;
    10. Different apertures of screen can be designed per the user's requirements.

    Specifications for General Vibrating and Sifting Shale Shaker

    Vibrating 500/2000 shale shaker screen
    40mesh/20meshx700x1050
    48-30D80mesh/20meshx700x1050

    120mesh/30meshx700x1050

    160mesh/40meshx700x1050
    40mesh-200mesh stainless steel woven wire cloth for above
    Vibrating 500/2000 shale shaker screen
    20mesh/12meshx700x1050
    48-30D40mesh/18mesh/12meshx700x1050

    100mesh/40mesh/20meshx700x1050

    160mesh/60mesh/20meshx700x1050

    200mesh/60mesh/20meshx700x1050
    20mesh-200mesh ss woven square mesh screen for above
    Three tier conglutination screen mesh40mesh/20mesh/12meshx715x1215
    80mesh/40mesh/12meshx715x1215
    120mesh/40mesh/20meshx715x1215
    180mesh/60mesh/20meshx715x1215
    20mesh-200mesh for above
    Shale shaker screen40mesh/12meshx900x1146
    80mesh/20meshx900x1146
    140mesh/20meshx900x1146
    20mesh-160mesh for above
    Vibrating sieving meshNS-115/260mesh/20meshx1150x1000
    100mesh/20meshx1150x1000

    Oil field replacement Shaker Screen

    Repairable and Replaceable Mesh and Screen
    Flat and framed plate screen panels are mainly used for Vibrating type shale shaker screen system with repairable plate screen panels.
    Materials: Carbon steel and stainless steel
