MUD MIXER-MUD MIXER FOR BENTONITE MIXING

Jan. 19, 2024

Mud mixer is a combination of mud mixing hopper, mixing pump, pipeline arrangement with butterfly valve and working skid. The mixer is for bentonite mixing to supply a proper drilling mud. AIPU is a professional manufacturer for separate mud mixer or mixer components which can vary as per job site requirement and client budget.

The mixing hopper can be on top of the tank or tank skid or only separate mixing skid. AIPU has built hundreds of mud mixers for bentonite mixing in oil & gas drilling, coal gas methane drilling, horizontal directional drilling, water well drilling and any other drilling which will require drilling mud.

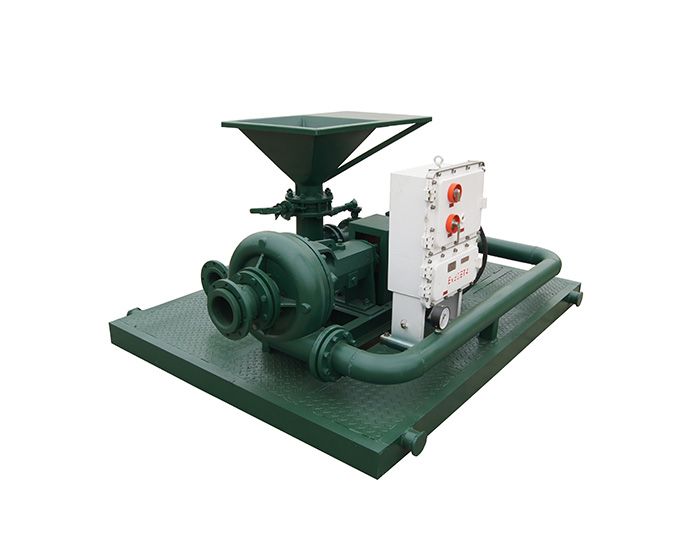

Jet Mud Mixer

MUD MIXER-MUD MIXER FOR BENTONITE MIXING

Mud Mixer Specification

  1. Mixing hopper 6” or 4“ size for selection depending on mud mixing capacity. The hopper contains a square or round hopper, venturi three direct links and 3 sets butterfly valves.

  2. Centrifugal pump with mechanical seal, pump size is an open option depending on mud mixing speed requirement. Normally 8×6 pump for 1000GPM mixing flow and 6×5 pump for 500GPM mixing flow.

  3. Pipelines connect mixing pump and mixing hopper to make a mud mixing circulation with inlet and outlet controlled with flange and fast connection.

  4. Working skid to supply a platform for all the above parts and fixed for forklift loading eyes.


Other than mud mixing pump AIPU is able to offer a mud mixing tank with mud tank, mud agitators, etc. Mixing tank size can be customized but six meters tank is most popular because it’s suitable storage capacity, inland transport and 20 feet containers lifting eyes. Please contact us freely for any interest or demand.
