Mud cleaner used in oilfields means the equipment processing drilling mud. It is combined with desander cone and desilter cone as well as a bottom shaker. It is called 2nd and 3rd phase solids control equipment.

Increases in the drill-solids content of muds generally lead to higher filtration rates and increased filter-cake thickness. Thick filter cakes aggravate the problem of differential-pressure sticking and cause increases in the torque and drag on the drill string. Field observations indicate that filter-cake properties can be controlled by controlling the amount and types of solids in the mud.

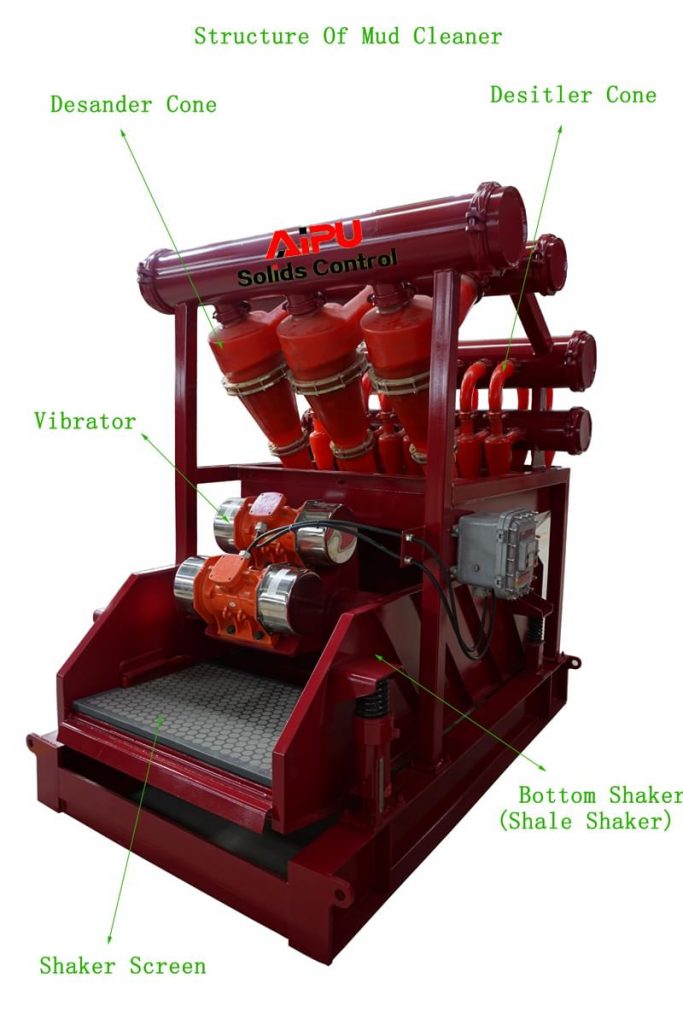

Oilfield Mud Cleaner

Drill solids cause a drastic reduction in bit-bearing life. King performed a series of experiments using an 8%-in. bit with 50,000 lb weight and rotating at 60 rpm. When water was the circulating fluid, the bearings lasted 36 hours. The addition of formation cuttings decreased the bearing life to 26 hours. When the mud was treated with caustic and quebracho, the bearing life was reduced to 12 hours. When the same experiment was conducted using bentonite instead of formation clays, the bearing life increased from 36 to 38 hours. Additions of caustic and quebracho to this system did not reduce the bearing life, but when drill solids were added to this mud the bearing life decreased to 15 hours.

Mud Cleaners

To overcome many of the limitations of current solids removal equipment, A combined ( shale shaker, desander, desilter ) equipment was developed for weighted muds. This solids control equipment, called the Mud Cleaner, removes most of the drilled solids while retaining most of the barite and liquid phase of the mud. Unlike most barite-reclaiming or solids-removal equipment normally employed only after the drilled solids have reached an undesirable level, the Mud Cleaner is most effective when used as soon as barite is added to the mud system, and continuously thereafter. The continuous operation removes solids before they disintegrate to silt or clay size, thus preventing drill solids from accumulating in the mud system.

1. Mud at a well-circulation rate flows through a first screen (shale shaker), which removes large-size solids;

2. The mud passes through, centrifuging stage (desilters), which separates the mud into a low-density effluent and a high-density underflow — the affluent, comprising most of the liquid phase, returns to the mud system;

3. The underflow, containing barite and drilled solids, flows through a second, smaller screen that is sized to pass the barite but to reject most of the drilled solids.

The first screen can be provided by a conventional shale shaker that usually has a screen size between about 10 and 80 mesh. For most wells, shaker screens finer than 80 mesh are not capable of handling mud at normal well circulation rates. This means that mud passing the shale shaker contains large amounts of drilled solids. These solids upset mud properties and are the most difficult to remove. By pumping the mud through desander, desilters, and screening the underflow, a large part of these fines can be removed without appreciable loss of barite.

A sufficient number of desilters are used to process the entire mud stream. The desilters separate relatively light and fine particles from the heavier and coarser particles. Barite, which is present in the underflow along with drilled solids, is passed to the second screening stage. Most of the bentonite and liquid phase is discharged from the desilter in the effluent stream.

For the second screen to reject additional drilled solids, its screen size must be much finer than the shaker screen but must be sufficiently large to pass most of the barite. The second screen is usually about 150 to 200 mesh. The flow rate of the underflow through the second screen is normally only about 10 to 20 percent of the well circulation rate. At such low throughput rates, the problem of screen blinding is not serious.

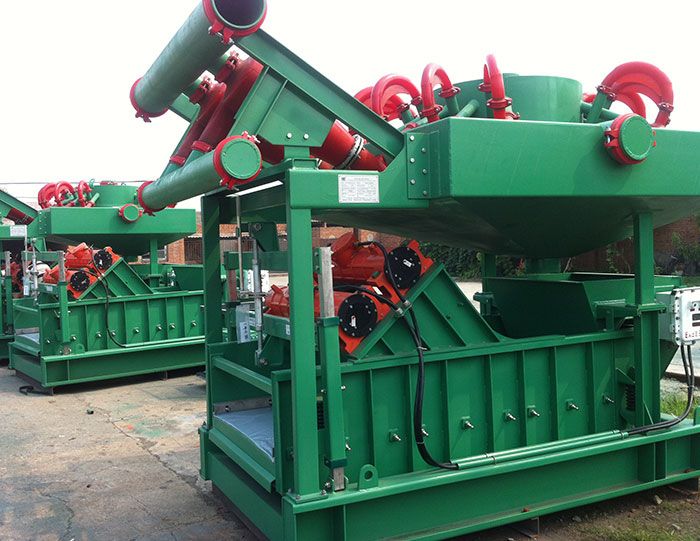

For best performance, the shaker screen requires special features. A vibrating screen that has performed quite well under field conditions is shown mounted on a portable skid below a bank of 4-in. desilters in Fig. 1. This mud cleaner has a factory-tensioned screen that ensures that screen life is not shortened by improper tensioning on the rig. A self-cleaning kit keeps drilled solids from plugging the screen and preventing the passage of barite. This kit is a tray of short, plastic cylinders that are bounced against the screen by a 1,800-rpm motor; the rapid agitation keeps the screens clean and operative.

The vibrating screens are adjusted at the factory to screen efficiently typical cyclone underflow material. The number and relative position of the upper and lower motor weights control the motion of the material on the screen surface. The horizontal throw of the material on each bounce is controlled by the number of top motor weights. The vertical amplitude is controlled by the number of bottom weight plates secured to the motor. The angle between the top and the bottom weights controls the spiral pattern on the screen.

When the solids drop onto the screens, the vibration causes them to spiral away from the center. A “rope” of material forms and rotates around the outer perimeter of the screen. As the material passes the discharge spout, some of the rope is removed from the screen.

Field Application

The Mud cleaner was used on many wells. In these applications, mud weights have ranged from 9.5 to 18.6 ppg. No well using the mud cleaner had a differential-pressure sticking problem. Many of the offset wells had experienced this problem, and the mud cleaner was used primarily to decrease the chance of getting stuck. The mud costs in these wells have varied above and below the predicted costs.

Maximum surveillance was given to test the mud cleaner in a deep well. Samples of the discarded material were taken periodically and the volume flow rates of low-gravity solids and barite were calculated.

The mud cleaner used on the deep well included a double-deck shale shaker. Desilter underflow could be treated over either the top deck or the bottom deck, or the flow could be divined in any proportion across both decks. The test started when barite was added to the mud to bring it to 11ppg to control pressure in a formation at the top of the sequence being penetrated. Highly permeable intervals below this formation were at various stages of depletion. Pressure differentials from the well-bore into the formation were as high as 6,800psig. This is a potentially dangerous differentials-sticking situation.

Controlling the drill solids in the drilling process not only kept the sticking coefficient low but also reduced the thickness of the mud filter cake — which reduced the width of the drill collar that could be buried. Of course, reducing the buried width reduces the force required to pull the pipe free.

Measurements of volumes of drill solids removed from the field solids control system indicated that frequently as many solids enter the system from the sides of the hole as from the drilling operation. This effect is particularly vivid when circulating bottoms-up. The shale shaker tends to load with solids, with a significant increase in solids handled by the second (bottoms shaker or fine shaker) screen shaker on the mud cleaner.

When the mud cleaner was put on stream, the mud weight was 10ppg, the solids content was 10 percent, and the sand content was 1 percent by volume. ( This mud contained 8 percent low gravity solids and 2 percent barite.) Plastic viscosity of the mud was 23 cp; the yield point was 16 lb/100 sq ft; high temperature, high-pressure water loss was 17.5 cc; API water loss was 9.0 cc; mud cake thickness was 2/32 in., and cation exchange capacity content was 35 lb/bbl. During this bit run, 11,400 lb of low gravity solids were removed from the solids control system. The 230 – TBC ( tensile bolting cloth) screen on the top deck removed 6,800 lb of low gravity drill solids and 1,300 lb of barite; the 165 -TBC shaker screen on the lower deck removed 4,600 lb of drilling solids but only 300 lb of barite. The 165 and 230 TBC shaker screens correspond to 150 and 200 mesh screens, respectively.

Operation of the Mud Cleaner And Practical Operating Techniques

Several misconceptions have developed during the life of the Mud Cleaner.

1. The Mud Cleaner does not replace the centrifuge. The decanter centrifuge removes material smaller than barite and the Mud Cleaner removes material larger than barite.

2. The Mud Cleaner should be used continuously while drilling with a constant mud weight. Drill solids missed on the first cycle will probably be removed only with a centrifuge.

3. The Mud Cleaner should discharge into a compartment downstream from its suction compartment. No other piece of equipment should parallel the flow path. The process could be thought of as one to “desilt” weighted muds.

4. When mud weight is increased by more than one or two points (0.1 to 0.2 ppg), the Mud Cleaner will remove some of the new barites if the suction is close to the point of barite entry. The unit could be shut down during one circulation to prevent barite loss.

5. If water is to be added to the mud system, it should be added across the fine screen. This will improve the barite/drill-solid separation and reduce barite loss.
