Jet Mud Mixer-Jet Mud Mixer For Drilling Mud Mixing

Jan. 18, 2024

Jet mud mixer is a separate equipment for drilling mud mixing separately or sit on mud tank skid. AIPU Solids Control build jet mud mixer with experience for oil & gas drilling, coal bed methan drilling, horizontal directional drilling and water well drilling. Different drilling may require different standard of equipments, especially the electrical standard will be very much different. The mixer will include a set of centrifugal pump, a set of mixing hopper, skid and pipeline arrangement.

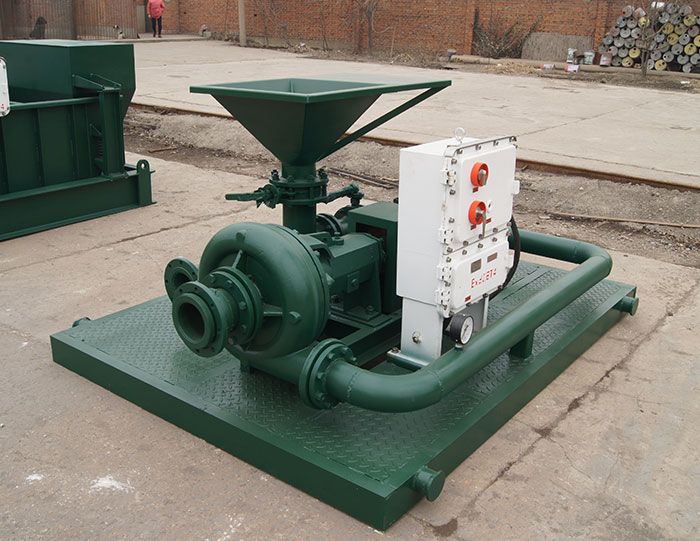

Jet Mud Mixer

Jet Mud Mixer-Jet Mud Mixer For Drilling Mud Mixing


Centrifugal Pump for Jet Mud Mixer

Centrifugal pump is the fluids supply for drilling mud mixing hopper. The pump size will be selected depending on mixed mud specification and mud flow mixing requirement. The centrifugal pump will work to transfer water or drilling mud with a suitable pressure. Other than supply drilling mud to mixer hopper, the centrifugal pump can work as feeding pump for desander & desilter, trip pump for trip tank, water pump for water line supply, etc. The electrical motor will need to suit different standard depending on drilling style and working area. The centrifugal pump connected with mixing hopper by soft connection with butterfly valve.


Mixing Hopper for Jet Mud Mixer

Mixing hopper will work to collect drilling chemicals with a small table for operation. The drilling chemicals will goes into hopper together with water or drilling mud supplied by centrifugal pump. There are 4 inch and 6 inch mixing hopper for option depending on mixing mud flow requirement. Suitable pipeline and butterfly valve will connected centrifugal pump and mixing pump and storage tank.
