ISHAKER SCREEN-ndustrial Shaker Screens and Hook Screens

Jan. 18, 2024

Industrial Screen and Maintenance (ISM) understands the needs of the many industries needing strong and reliable shaker and hook screens for sifting, sieving, and sizing purposes. Shaker and hook screens are often considered to be the most important of the solid control system when it comes to oil drilling, and mining operations. The performance of every piece of equipment that follows depends on the performance of the shaker screen and how effectively it removes solids from treated drilling fluid.

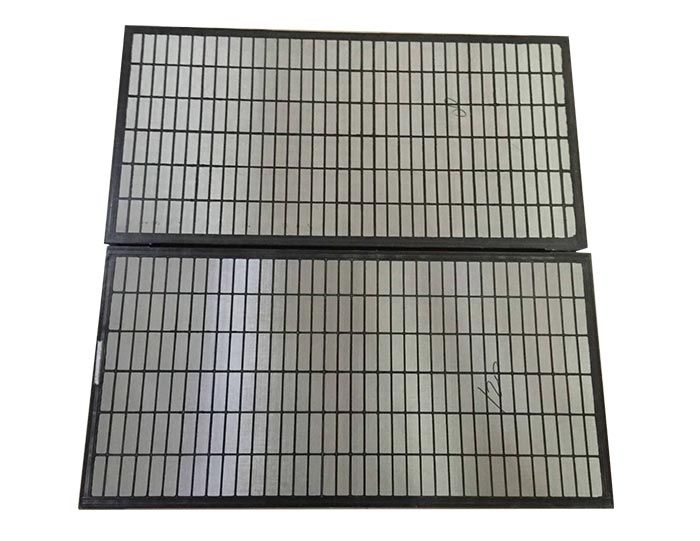

Composite Material Shaker Screen

Shaker Screen Types

Some of the types of shaker screens depend both on the structure of the screens themselves, as well as the aperture and design.

Common screen structures include the flat screen design, traditionally the most often used shaker screen type, as well as newer designs such as the pyramid design. The dimension of the pyramid design allows for a significant increase in the fluid handling capacity of each screen – up to 40% greater, to be exact.

Hook Strip Screens

Industrial Screen and Maintenance can create nearly any type of hook strip screen for your sifting, sizing, and straining needs. The hook strip design refers to the way that shaker screens used for sifting, sieving, and classifying needs are secured using rails clamped along the edge to provide tension across the screen surface. These are called either hooks or hook strips.

Single Layer VS Double Layer

Depending on the application, a shaker screen might be single layer or double layer. A single layer hook screen, like its name suggests, features one layer of screen held to the proper tension with banded hook edges that add strength. A double-layer mesh hooked screen can include both a coarse mesh and a fine mesh, increasing strength and lengthening the shaker screen life expectancy.
