Introduction to Linear Motion Shale Shakers: Principles and Mechanisms

Linear motion shale shakers are vital components in the drilling industry, essential for separating solids from drilling fluids. Their design and operation play a significant role in maintaining drilling efficiency and ensuring effective management of drilling fluids. This article provides an introduction to linear motion shale shakers, focusing on their principles and mechanisms.

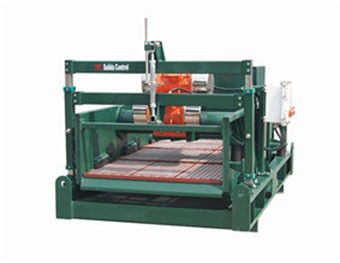

What is Linear Motion Shale Shaker?

Shale shaker drilling is a type of equipment used to filter out solid particles from drilling fluids. It operates by vibrating a mesh screen in a linear, back-and-forth motion. This motion helps to effectively separate cuttings and other solids from the fluid, allowing for the recycling of the cleaned fluid back into the drilling process. Linear motion shale shakers are favored for their efficiency and reliability in various drilling environments.

Principles of Operation About Linear Motion Shale Shaker

The core principle behind a mud shale shaker is its vibration mechanism. Unlike other types of shakers, which may use elliptical or circular motion, linear motion shakers operate with a straight-line vibration pattern. This is achieved through the use of vibrating motors or exciters mounted on the shaker. These motors generate a consistent linear vibration, causing the screen to move in a back-and-forth motion.

Linear motion shale shakers use screens made of wire mesh to separate solids from the drilling fluid. The screen is typically mounted at an inclined angle on the shaker deck, which allows gravity to assist in the separation process. The mesh size of the screen determines the size of the particles that can pass through. The design ensures that the larger particles are captured while the clean fluid flows through to be recirculated.

As the drilling fluid is fed onto the vibrating screen, it spreads out evenly across the surface. The linear vibration forces the solids to move towards the end of the screen, where they are collected and discarded. The clean fluid, on the other hand, passes through the mesh and flows into a collection trough or tank. This continuous flow ensures that the drilling fluid remains at the correct viscosity and density, which is crucial for efficient drilling operations.

Key Components About Linear Motion Shale Shaker

Vibrating motors or exciters are crucial components of linear motion shale shakers. They generate the linear vibration needed to drive the screen's back-and-forth motion. These motors are typically adjustable, allowing operators to fine-tune the vibration frequency and amplitude to match the specific requirements of the drilling operation.

Screen panels are the filtering elements of the shaker. They are made from high-strength wire mesh and come in various mesh sizes depending on the desired level of filtration. The panels are mounted securely on the shaker deck and are designed to withstand the abrasive nature of drilling cuttings and fluids.

The deck frame supports the screen panels and is designed to absorb and distribute the vibrations generated by the motors. It is typically made from durable materials such as steel to ensure longevity and stability during operation.

The collection trough is positioned beneath the screen to collect the clean fluid that passes through the mesh. It channels the fluid into a storage tank or back into the drilling system for reuse. The design of the trough ensures efficient fluid recovery and minimizes the risk of spillage.

Advantages of Linear Motion Shale Shakers

Linear motion shale shakers are highly effective at controlling solids, thanks to their consistent vibration pattern and adjustable screens. This effectiveness helps maintain the proper properties of the drilling fluid and reduces the likelihood of drilling problems.

The linear vibration reduces the likelihood of screen blinding and plugging, extending the lifespan of the screens. This durability leads to lower maintenance costs and fewer screen replacements.

By efficiently separating solids from the drilling fluid, linear motion shakers contribute to effective fluid recovery and recycling. This process reduces waste and operational costs, making it an economically viable option for drilling operations.

Linear motion shale shakers can be customized to handle various types of drilling fluids and solid sizes. Their flexibility makes them suitable for a wide range of drilling applications, from conventional to complex operations.
