Ideal Mud Tank System-mud system

Jan. 17, 2024

Maximized solids control

Mud tank systems are a critical component of any drilling operation for maximizing solids control efficiency and effectiveness.

The Ideal Mud Tank System is a two-tank unit with a total active (operating) capacity of 1,318 bbl (total/nominal capacity of 1,500 bbl).

The system comes complete with all the essential solids control equipment necessary for successful operations. Additionally, optional solids control configurations are available to suit the needs of specific applications.

Hdd Mud Recycling Systems

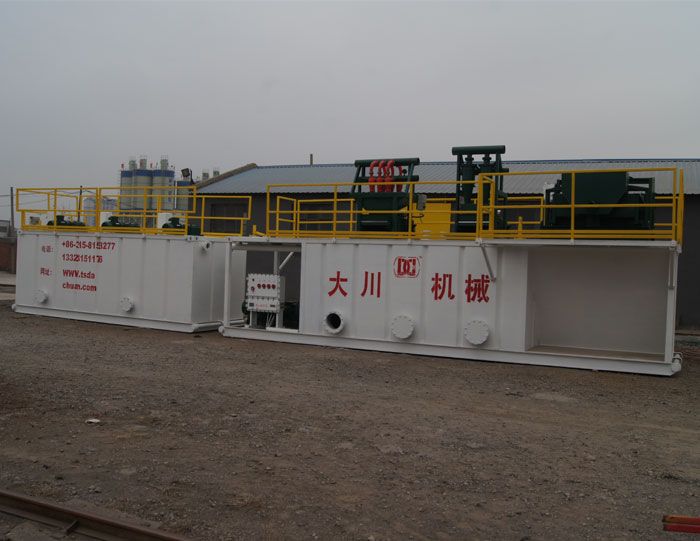

Ideal Mud Tank System-mud system


Features/Benefits

Removable shaker skidsAllow for quick and easy mobilization and demobilization

Processing equipment mounted on separate, removable skid

Vertical, direct-driven centrifugal pumpsMinimizes the footprint required by the pumps

Centrifugal pumps and control manifold installed on a pump porchProvides easy access for controlling processes

Each centrifugal pump is in close proximity to a specific piece of equipmentAllows for shorter piping runs with less friction

Maximizes horsepower and hydraulic efficiency

Caustic barrel telescopes remain on tank during transportationAllows for quick and easy mobilization and demobilization; provides a safe way to add caustic to the mud system

With its total active (operating) capacity of 1,318 bbl (total/nominal capacity of 1,500 bbl), the Ideal Mud Tank System provides a volume usually achieved with a three-tank system while reducing transportation costs

Vortex breakers at each suctionPrevents cavitation of centrifugal pumps

Minimal piping inside tanksAllows for proper agitation, thus improving homogenization of the mud

Integrated cement and active bypassPrevents equipment contamination

Sloped sand trap with integrated mud gunFacilitates quick, easy, and thorough cleaning

Complete system can be transported with only four trucksPermits quick rig-up and reduces transportation costs

30-in. distance between shakers (competition’s standard is 24 in.)Provides easy access to shakers for maintenance, screen changes, etc.

Electrical cable traysEliminates cable sag
