Drilling Mud Agitator Application And Design

The Drilling Mud Agitator is a continuous and reliable drilling mud solid control system for drilling fluid to maintain the uniformity of the drilling fluid and suspend the solid phase particles. It is mainly used for the mixing and mixing of drilling fluids to prevent the solid phase particles of drilling fluid from being deposited in its tank circulation system, so that the performance of the circulating drilling fluid is stable and evenly mixed.

working principle

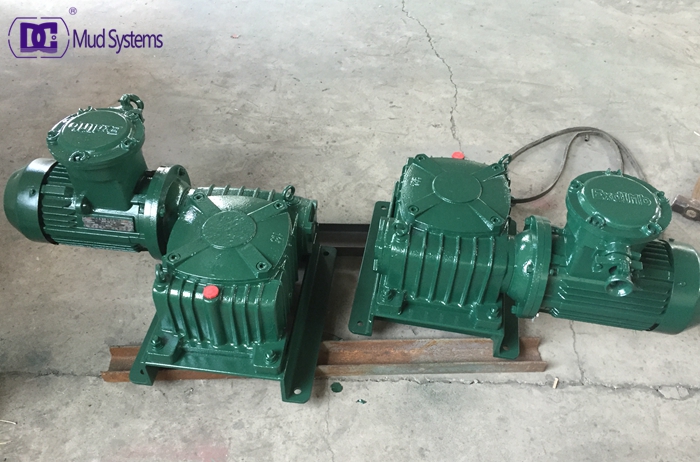

The mud mixer is suitable for the agitation of petroleum drilling fluids. The mud mixer adopts cycloidal speed reducer below 5.5kW, and the 7.5kW or more drilling fluid slurry agitator adopts worm-worm reduction transmission. The pulsator can make the stirring fluid to vortex motion, thus enhancing the mixing effect. The tray sandwiched between the blades also prevents mud solid particles from depositing around the lower blades after shutdown, so that the resistance of the sediment to the blades during start-up can be reduced, thereby avoiding the start-up overload and burning the motor.

Basic Features

The mud mixer has the advantages of compact structure, small floor space, large transmission torque, stable operation and reliable operation.

1, using a circular cylindrical worm reducer, the shaft section is a circular arc-shaped cylindrical worm, the worm gear tooth shape is a circle with the worm. Therefore, the convex and concave meshing performance is reliable, the efficiency is high, and the structure is compact.

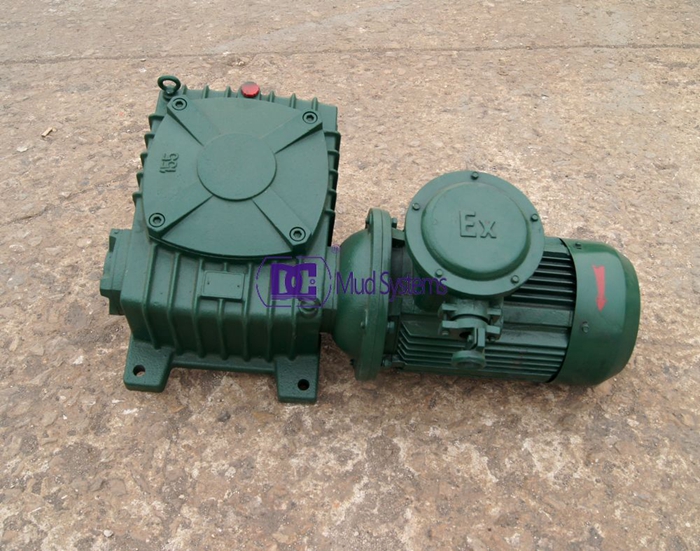

2, the combination of the reducer and the explosion-proof motor, easy to maintain, suitable for use under harsh conditions in the field.

3, the stirring intensity is large, the sweeping range is wide, and the starting resistance torque is reduced.

4, the motor is placed horizontally, easy to install, adjust and replace.

5. Various gearbox and blade combinations can be adapted to most requirements;

6. The mud mixer is highly efficient in deep and large containers;

7, Mud System Supplier can be designed to produce the appropriate shear force;

8. Expose more fluid to the atmosphere and the mud agitator helps to cool the drilling fluid.
