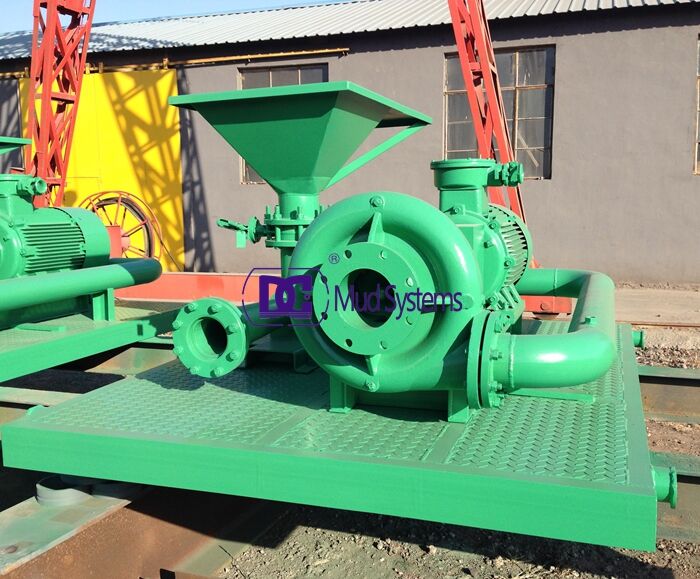

DCSLH150-35 Jet Mud Mixer Delivery To French Clients

Jet Mud Mixer is a unique equipment for solid control system. DC Solids Control build DCSLH150-35 jet mud mixer with experience for oil & gas drilling, coal bed methane drilling, horizontal directional drilling and water well drilling.

DCSLH150-35 Jet mud mixer has the following product features:

Treating Capacity: 120-210 m3/h528-924GPM

Matching Pump: SB6 x5-12-30kW

Pressure: 0.25~0.40Mpa

Feed Inlet: 6〃 (150)

Inlet Diameter: 6〃

Outlet Diameter: 5〃

Hopper Size: 600x600mm

Mixing Speed: ≤80kg/min

Mud Density: ≤2.0g/cm3

Mud Viscosity: ≤120s

Dimension: 2200 x1760 x1250mm

Weight: 1280kg

The first part for jet mud mixer– Matched SB6 x5-12-30kW Centrifugal Pumps

Centrifugal pump is the fluids supply for drilling mud mixing hopper. The pump size will be selected depending on mixed mud specification and mud flow mixing requirement. The centrifugal pump will work to transfer water or drilling mud with a suitable pressure. Other than supply drilling mud to mixer hopper, the centrifugal pump can work as feeding pump for desander & desilter, trip pump for trip tank, water pump for water line supply, etc.
