DCQJ250X2/100X12 Mud Cleaner structure and efficient work

Mud Cleaner is the second phase or the third phase solids control equipment, and it is the combination of desander, desilter and underneath shale shaker, so it can be called Desander and Desilter.

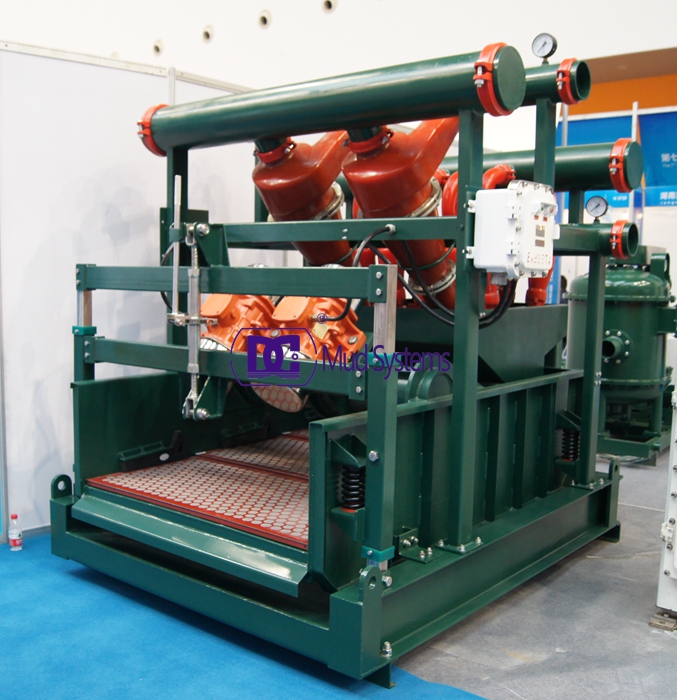

The model of DCQJ250X2/100X12 Mud Cleaner combines 10” desander hydrocyclone(s) with smaller 4” hydrocyclones, effectively taking two “cuts” at the unwanted solids contaminating the fluid. The 10” remove large solids down to approximately 100 microns and the 4” can remove solids down to the 20 micron size range. The vibratory screening unit is designed to take the underflow of both size sets of hydrocylones and separate the concentrated solids from the liquid.

The Mud Cleaner requires two pumps to operate, with the pump feeding the 10” cyclones typically taking a suction from a compartment upstream from the compartment from which the other pump takes its suction to feed the 4” hydrocyclones.

The Mud Cleaner will be designed to handle the entire circulating volume of whichever system in which it is operating. Mud Cleaners are effective on both weighted and un-weighted drilling-fluid systems in removing and drying solids while retaining the expensive liquid phase. Used correctly, the Mud Cleaner can lower both drilling fluid and disposal costs.

DC mud cleaner structure is compact, it occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.
