Brandt desander cones shipped to India

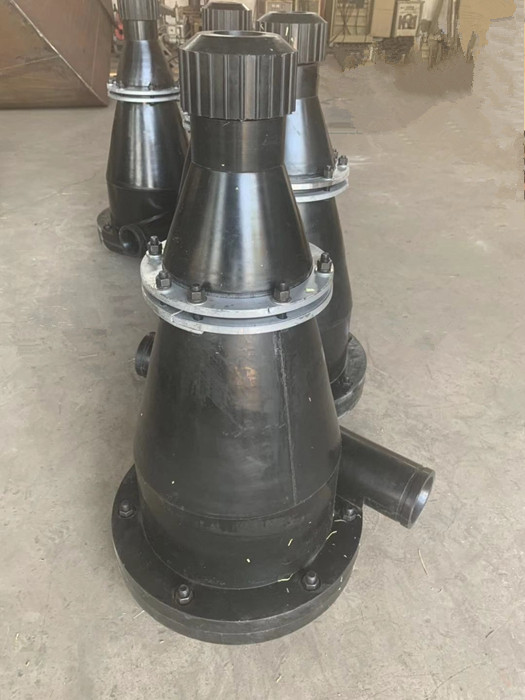

The desander and desilter are important parts of solids control system, and the hydrocyclone cones is the key component. Yesterday, DC solid control shipped 4 pcs BRANDT desander cones to India clients.

The desander cone and desilter cones all are also referred as hydrocyclone cones, cones are basically separate the solids from drilling fluids. The separation process is carried out by employing centrifugal forces. The Cones are made of high durameter polyurethane with optional steel inserts, which ensure consistent productivity.

Use and ability of desander cones

Desander Cones remove abrasive, coarse solid particles upto 60 microns.

Desander Cones are available in 10″ attachments with a 4″ inlet and 6″ outlet.

10″ drilling mud desander cone

10″ drilling mud desander cone

Sand size solids removal (40 ~ 100 microns)

100% polyurethane hydrocyclone

500 gpm per cone at 75 feet of head

Flexible fast connection is available for user to assemble

Compact design, small footprint

The standalone desander/desilter hydrocyclone unit can be assembled above linear motion shale shaker to recycle the useful drilling fluids from hydrocyclone underflow screening by fine mesh screens. Mud cleaner which combines desander, desilter and dewatering shale shaker in one unit is often used in nowadays drilling applications.

Please contact us for more details about the hydrocyclone units that most suits your condition
